UV Curing Printing Solution

UV Curing Printing Solution: Overcoming Adhesion and Deformation Challenges in Packaging and Label Printing

Overview: When Traditional Printing Meets New Materials, We Provide Reliable New Processes

Is your packaging printing facing these challenges?

Poor ink adhesion and easy peeling when printing on PP, PE plastics or other specialty materials?

Material deforms at high temperatures, yet ink doesn’t dry at low temperatures with hot air drying?

Low production efficiency, with drying times stretching to tens of minutes, hindering fast delivery?

Increasingly strict environmental regulations on VOCs emissions, putting compliance pressure on traditional processes?

If any of the above resonates, you’re not facing an isolated issue, but a fundamental conflict between traditional heat-drying processes and modern packaging materials.

The UV Curing Printing Solution introduced by Deyouzh is designed precisely to resolve this conflict. We provide a complete package, from high-performance UV curing systems to fully automatic printing units, focusing on solving printing challenges for non-absorbent, heat-sensitive materials like plastics, synthetic paper, and metal foils. We ensure high adhesion, zero thermal deformation, and instant curing, helping you achieve a leap in both quality and efficiency.

Core Principle: Why is UV Curing a Superior Solution?

The dilemma of “deformation at 80°C, no drying at 60°C” stems from the fundamental process principles. The table below clearly reveals the essential differences between the two paths:

Feature Comparison	Traditional Hot Air Drying	Deyouzh UV Curing
Working Principle	Physical Process: Heats to evaporate solvents, relies on heat conduction.	Photochemical Process: UV light triggers instant molecular cross-linking and curing.
Heat Impact	Requires overall high-temperature heating, easily causing softening and deformation of substrates like PP, PE.	“Cold Process” Characteristic: Generates minimal heat that causes deformation, eliminating thermal distortion at its source.
Drying/Curing Speed	Slow (minutes to tens of minutes), depends on solvent evaporation.	Extremely Fast (seconds), instant hardening after printing, allowing immediate stacking or further processing.
Adhesion Performance	Generally poor adhesion on low-surface-energy plastics (e.g., PP, PE).	Curing forms a dense cross-linked layer, significantly enhancing adhesion on non-absorbent materials.
Environmental & Safety	Typically involves solvent evaporation (VOCs), requiring additional treatment.	Near-zero VOCs emission, creating a safer, cleaner production environment.

The conclusion is clear: For the vast majority of modern packaging and label materials, UV curing is a fundamentally more compatible and reliable advanced production path.

https://media/image1.jpeg{width=”5.745833333333334in” height=”4.309027777777778in”}

Our Solution: More Than Just a UV Lamp

We deliver an integrated system that ensures process success:

1. Intelligent UV Curing Center

Precise Energy Control: Uses a PLC system for accurate control of UV intensity and energy, ensuring complete curing for inks of different colors and thicknesses.

Mercury Lamp/LED-UV Options: Offers traditional mercury lamps or more energy-efficient, lower-temperature LED-UV light sources to meet diverse needs.

Efficient Cooling Design: Built-in cooling and exhaust systems effectively manage heat, protecting temperature-sensitive substrates.

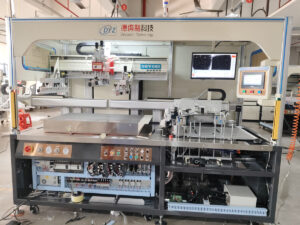

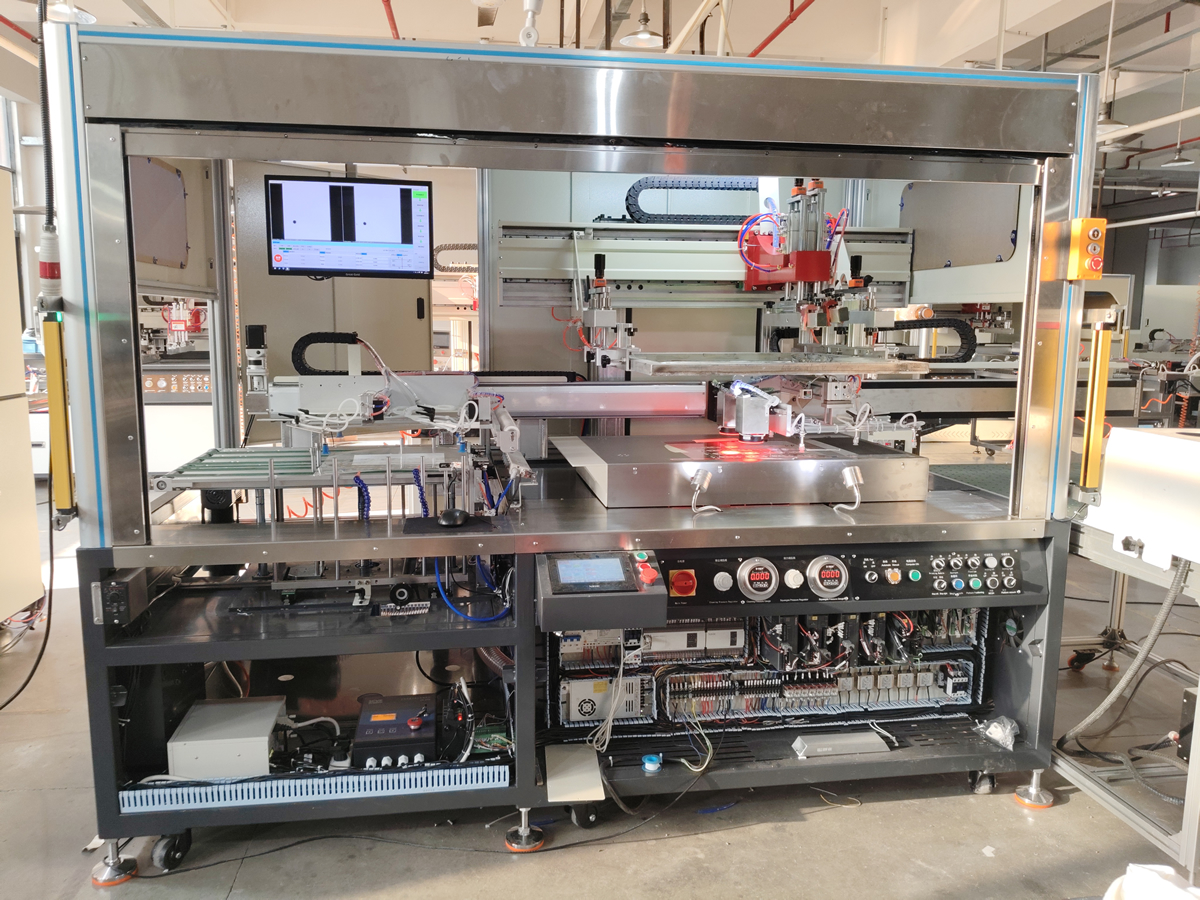

2. High-Precision Printing Unit (Seamlessly Integrated)

Precision Vision Alignment: Equipped with a CCD vision system to ensure accurate multi-layer registration and positioning, meeting the stringent requirements of high-end packaging and anti-counterfeit labels.

Specialized Ink Compatibility: Capable of stably and efficiently printing various UV adhesives, UV inks, and UV varnishes.

Fully Automatic Linkage: Intelligently synchronized with the curing system, enabling integrated “Print-Cure-Unload” workflow for maximum efficiency.

3. Professional Process Support

We can recommend proven specialized UV ink brands and models based on your specific substrate material (e.g., PP, PET, metallized films).

Provide targeted suggestions for screen making and printing parameters to ensure the best starting point for your process.

Application Scenarios: We Provide Answers for These Problems

Your Potential Product	Core Challenge	Value Delivered by Deyouzh Solution
Plastic Packaging Boxes/Cans (PP, PE, PET)	Poor adhesion, heat deformation, slow drying	High-adhesion finish, 100% elimination of thermal deformation, production efficiency multiplied.
High-End Self-Adhesive Labels (Film, Synthetic Paper, Metal Foil)	Diverse, hard-to-handle materials; difficulty achieving special effects.	Versatile machine, excellent adhesion, easily achieving effects like spot UV, matte finishes.
Display Stands & Signage (PP Corrugated Board, Foam Board)	The “warping upon heating” deformation problem.	Completely solves deformation pain points, enabling fast, flat, high-quality graphic output.
Electronics Packaging (Anti-static, Specialty Coated Materials)	Ink rejection on special coating surfaces.	Strong adhesion overcomes printing challenges on coated surfaces, enhancing product grade.

Customer Practice Validation: PP Corrugated Board Display Stand Printing

“We used hot air dryers before. It was hard to get the temperature right—the boards would either warp or the ink wouldn’t dry, resulting in a scary scrap rate. After switching to Deyouzh’s UV line, the ink dries completely in 10 seconds, the boards stay perfectly flat, adhesion meets standards, and our output increased three to fourfold. The workshop odor is also gone. This investment was well worth it.”
—— Production Manager, a display products manufacturer

Return on Investment: Calculating the Upgrade

Choosing UV curing is not just a technical upgrade, but a strategic investment with clear returns:

Direct Savings:

Significant Reduction in Scrap Rate: Solving deformation and ink peeling directly saves substantial material costs.

Multiplied Production Efficiency: Curing time shifts from “minutes” to “seconds”, unlocking capacity and shortening delivery cycles.

Optimized Energy Consumption: No need to maintain large ovens at high temperatures for extended periods, leading to significant energy savings (especially with LED-UV).

Intangible Value Add:

Expands Business Boundaries: Enables reliable acceptance of higher-value-added orders with a wider range of materials, boosting competitiveness.

Ensures Compliance & Safety: Easily meets environmental regulations, avoiding future policy risks, and enhancing the company’s green image.

Improves Workshop Environment: Creates a solvent-odor-free working environment, demonstrating care for employees.

Next Steps: How to Start Your Process Upgrade?

We recommend a three-step approach for a steady, clear upgrade path:

1. Free Sample Testing: Send us your substrate samples. We will conduct free UV printing and curing tests, demonstrating the actual results to you.
2. Personalized Solution Design: Based on your product mix, output goals, and budget, provide a customized equipment configuration and workshop layout plan.
3. Turnkey Project & Training: We handle line integration, commissioning, and ensure your team can operate and maintain the system independently.

Consult now for a free sample test opportunity and a customized proposal
Deyouzh Intelligent Equipment Co., Ltd. — Focused on Precision Printing System Solutions
📞 Packaging Printing Hotline: +86 189 2553 9776
📧 Email: yli983733@gmail.com
🌐 Website: www.deyozhi.com

Content on this page is based on general cases. Specific process results may vary depending on material, ink, and design. You are welcome to provide samples for actual testing to obtain the most accurate expected outcome.
