Magazine Stack Loader Product Introduction

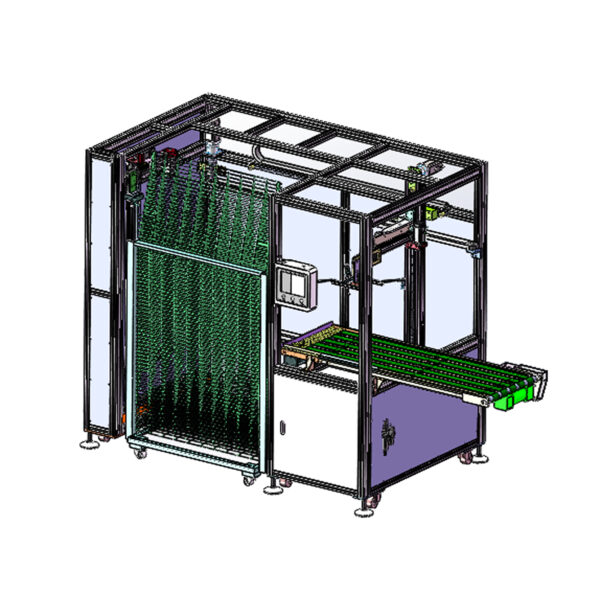

The DYZ Magazine Stack Loader is specifically designed to handle non-stackable sheet products (such as printed materials, sprayed parts, laminated materials, etc.), enabling efficient connection to automated production lines like screen printers and CCD vision printers. Through multi-servo coordinated drive, the equipment simulates manual pick-and-place actions, achieving fully automated loading from the magazine stack to the conveyor line. It significantly reduces labor intensity while enhancing production cycle time and product protection levels.
A High-Precision, High-Flexibility Solution for Automated Sheet Loading
The DYZ Magazine Stack Loader is specifically designed to handle non-stackable sheet products (such as printed materials, sprayed parts, laminated materials, etc.), enabling efficient connection to automated production lines like screen printers and CCD vision printers. Through multi-servo coordinated drive, the equipment simulates manual pick-and-place actions, achieving fully automated loading from the magazine stack to the conveyor line. It significantly reduces labor intensity while enhancing production cycle time and product protection levels.
Core Value & Advantages
Non-Destructive Gripping & Precise Positioning: A five-axis servo drive system enables smooth gripping, transfer, and placement, preventing product scratches and deformation.
Intelligent Page-Turning & Warning Function: Automatically turns the magazine stack pages, gently mimicking a human hand. Provides an automatic reminder to change the stack when only two layers remain, ensuring continuous production.
Wide Compatibility & Flexible Customization: Supports a variety of product sizes (130×200mm to 500×700mm). Smaller sizes can be accommodated with custom fixtures and programming.
User-Friendly HMI: Full Chinese touchscreen interface with adjustable parameters and storable recipes. Simple to operate with low training cost.
High-Reliability Design: Utilizes high-quality components including Taiwanese AirTAC pneumatic elements, HIWIN/Dinghan guide pillars/bushings, and Omron electrical controls, ensuring long-term stable operation.
Plug-and-Play Integration: Can be seamlessly integrated with mainstream screen printing equipment and conveyor lines, supporting signal linkage and cycle synchronization.
Detailed Equipment Features
1. Five-Axis Servo Coordinated Operation System
The equipment is equipped with five independent servo systems, controlling respectively:
Gripper Vertical Lift
Gripper Horizontal Displacement
Gripper Forward/Backward Travel
Magazine Stack Page Turning (Up/Down)
Magazine Stack Indexing Advance
All axes move in a coordinated and smooth manner, achieving human-like loading/unloading operations and adapting to various material forms.
2. Intelligent Magazine Stack Management System
Automatic Page-Turning Mechanism: Automatically turns to the next layer after smoothly picking up the product, supporting continuous operation.
Layer Warning Function: Activates audible and visual alerts when production reaches the last two layers, allowing operators to prepare for a stack change in advance.
Accurate and Reliable Positioning: Minimal positioning error per layer ensures consistent pick-up location, enhancing production stability.
3. Flexible Product Adaptability
Supports a wide range of product sizes, up to 500×700mm maximum. Minimum size can be customized down to 130×200mm or below.
Various end-effectors such as suction cups and grippers are available as options to adapt to products with different materials and surface characteristics.
4. Human-Machine Interface & Control System
Control System: Xinjie/Chechuang industrial-grade PLC, offering fast response and high stability.
Operation Interface: 10-inch Chinese touchscreen with graphical operation, supporting multiple parameter set storage, real-time status monitoring, and fault diagnosis.
System Composition & Component Brands
| Component Category | Selected Brand(s) | Remarks |
| Pneumatic Components | AirTAC (Taiwan) | Can be customized per client’s specified brand. |
| Guide Pillars/Bushings | HIWIN (Taiwan) / Dinghan | High rigidity, high precision guidance. |
| Electrical Control Components | Omron | Relays, sensors, etc. |
| HMI / Control System | Xinjie / Chechuang | PLC + Touchscreen integrated control. |
Main Technical Parameters
| Item | Specification |
| Model | DYZ Magazine Stack Loader |
| Product Size Range | 130×200mm ~ 500×700mm (Smaller sizes customizable) |
| Max. Operating Speed | Approx. 500 pcs/h (Adjustable based on product & process) |
| Power | 2.5 kW |
| Power Supply | 3N-50Hz-380V |
| Working Air Pressure | 0.5 ~ 0.6 MPa |
| Equipment Length | Approx. 2200 mm (Adjustable) |
| Equipment Width | Approx. 1350 mm |
| Equipment Height | Approx. 2022 mm |
Recommended Application Scenarios
| Industry | Typical Products | Value Proposition |
| Screen Printing | Phone covers, signage, panels, gift boxes | Replaces manual picking, avoids fingerprints/scratches, improves print consistency. |
| Electronics Assembly | FPC, backlight modules, touch screens | Non-destructive loading, suitable for thin/fragile components, reduces defect rate. |
| Home Appliance & Automotive Interior | Instrument panel surfaces, decorative sheets, buttons | Enables automated integration with spraying, laminating, inspection processes. |
| Packaging & Post-Print | High-end paper boxes, cards, flexible packaging | Achieves automatic post-printing loading, connecting to die-cutting, hot stamping equipment. |
Frequently Asked Questions (FAQ)
Q: Can the equipment integrate with printers from other brands?
A: Yes. The equipment comes with standard universal I/O interfaces and communication protocols (e.g., Modbus). Signal interfacing and program adaptation can be performed based on the customer’s equipment.
Q: What is the minimum product size it can handle?
A: The standard minimum is 130×200mm. Smaller sizes require custom suction cups or grippers and optimization of the picking logic.
Q: How long does it take to change a magazine stack?
A: Stack changeover can typically be completed within 1~2 minutes. The equipment features a quick-change positioning design for efficient changeovers.
Q: Does it support MES system data upload?
A: Yes. Data interfaces for production counts, status information, etc., can be provided for integration into factory information systems.
Next Steps Recommendations
If you are looking for:
An automated loading solution to replace manual picking.
An integrated system to connect with screen printers, inspection machines, etc.
A flexible loading device for handling fragile, non-stackable products.
Please contact us. Provide your product dimensions, cycle time requirements, and existing equipment information. We will provide you with:
- Customized Solution Evaluation
- On-site Layout Diagram
- Equipment Demonstration or Case Videos
- Detailed Quotation & Delivery Timeline
📞 Contact Us: Automation Division – Mr. Yi: 189-2553-9776
📧 Send Requirements to: yli983733@gmail.com (Please note “Magazine Stack Loader Inquiry” in the subject)
🌐 More Cases: Visit our website www.deyozhi.com → Product Center → Automated Loading Systems
Deyouzhi Intelligent Equipment Co., Ltd. reserves the right to adjust parameters due to technical upgrades. Specifics are subject to the final technical agreement.
